SUPERMIG 2209



DESCRIPTION : SUPER MIG 2209 is used for the welding of duplex stainless steels in a range of applications including the fabrication of pipe and plate. The weld metal provides a high resistance to pitting and stress corrosion cracking especially in high chloride media. The nickel is over matches the parent material by 2-3% to provide an optimum balance of austenite and ferrite in the as welded condition.



SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)



FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish



SUPERMIG 2209 - TYPE OF PACKING :

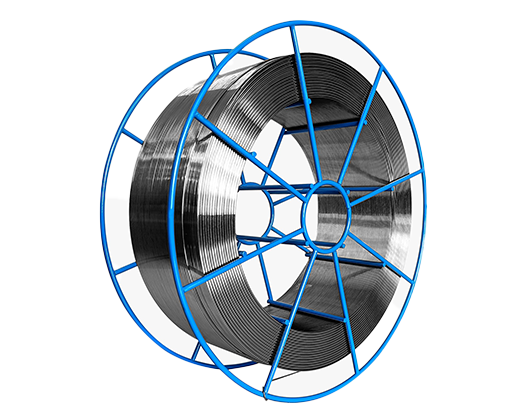

SD 300 / BS 300  11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool.

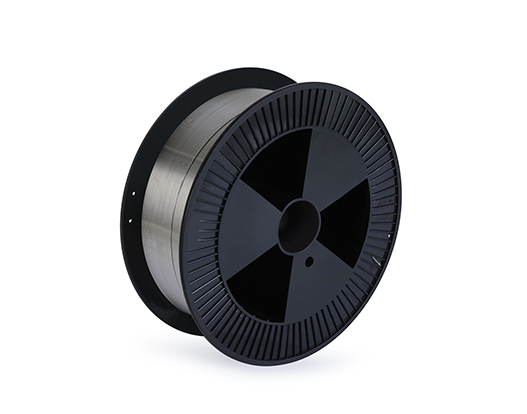

SD 200  4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool.

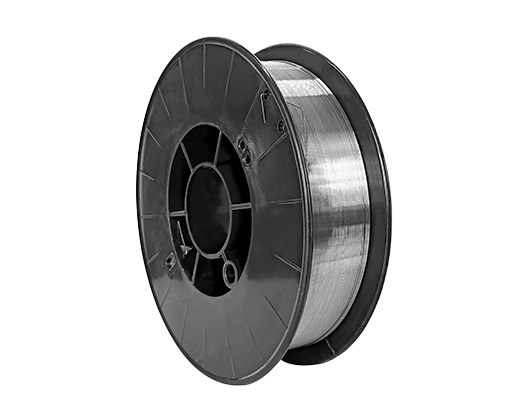

SD 100 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool.

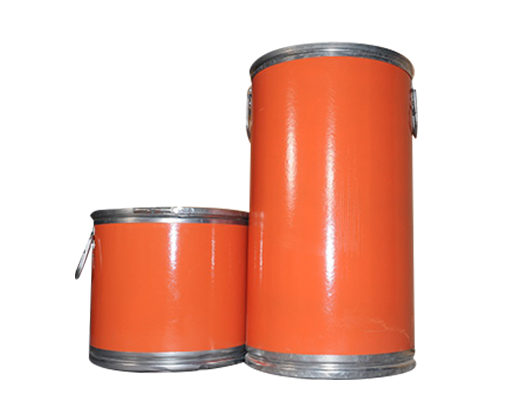

Mig Wire in Drum In Drums of 100-250 Kgs (200-550 Lbs)



Share with

TechnicaL Specification

PRODUCT NAME AWS/SFA YIELD STRENGTH N/MM2 TENSILE STRENGTH N/MM2 ELONGATION A5(%) IMPACT ENERGY ISO-V(J) 20° C WELDING CONDITIONS PRODUCT NAME AWS/SFA YIELD STRENGTH N/MM2 TENSILE STRENGTH N/MM2 ELONGATION A5(%) IMPACT ENERGY ISO-V(J) 20° C WELDING CONDITIONS
SUPERMIG 2209 ER 2209 ≥ 480 ≥ 690 ≥ 22% ≥ 50 DC (+) SUPERTIG 2209 ER 2209 ≥ 480 ≥ 690 ≥ 22% ≥ 50 DC (-)
×
