Description
SUPERMIG 316L
DESCRIPTION : SUPERMIG 316L is an extra low carbon 19 Cr/ 12 Ni/ 3 Mo type stainless steel solid wire similar in composition to ER 316L. Suitable for the welding or surfacing of having similar compositions. The weld metal has excellent creep strength upto 850°C. Ferrite controlled between 5 to 10%. The weld metal has excellent crack resistance, intergranular corrosion and creep resistance properties. Excellent mechanical properties and resistance to chemical corrosion.
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish
SUPERMIG 316L - TYPE OF PACKING :

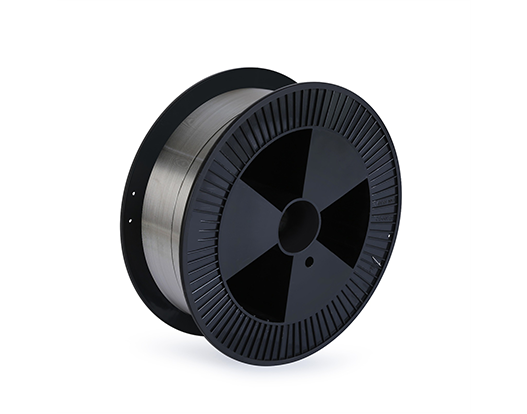

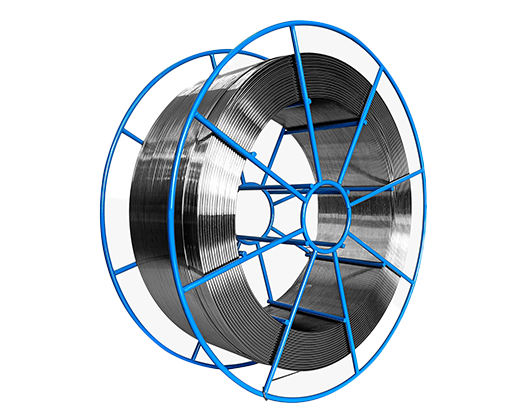

| SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |

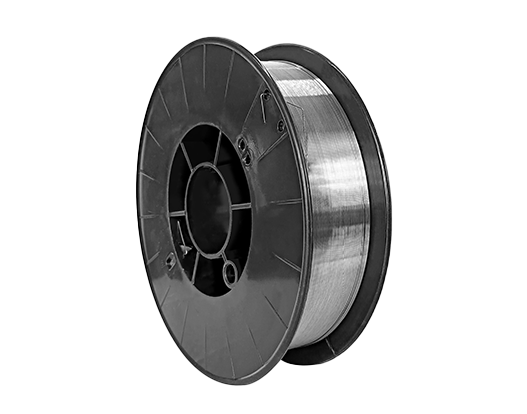

| SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
| SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |

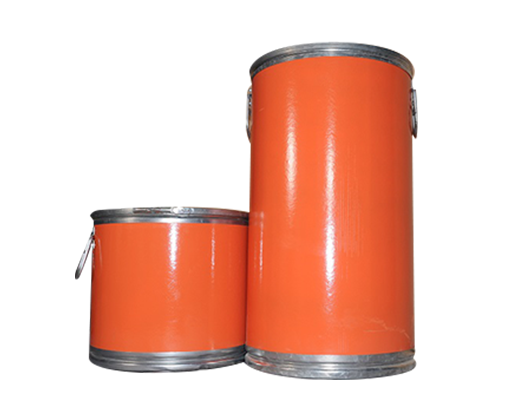

| Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
TechnicaL Specification
| PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT ENERGY ISO-V(J) -20° C | WELDING CONDITIONS |
| SUPERMIG 316L | ER 316 L | ≥350 | ≥520 | ≥30 | ≥47 | DC (+) |
