Description
SUPERMIG 309LMo
DESCRIPTION : SUPERMIG 309LMo is used for TIG / MIG welding of molybdenum containing high alloy and un-allyoed steels. The presence of molybdeunm improves tensile strength and corrosion resistance. Also suitable for welding of stainless steels type AISI 309 series, 316 type clad steels as well as dissimilar metals such as molybdenum containing austenitic stainless steel to carbon steel etc.
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish
SUPERMIG 309LMo - TYPE OF PACKING :

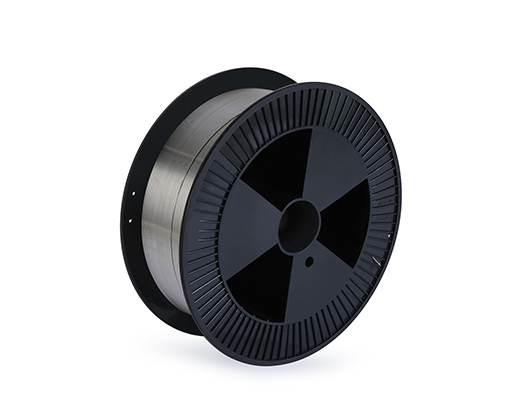

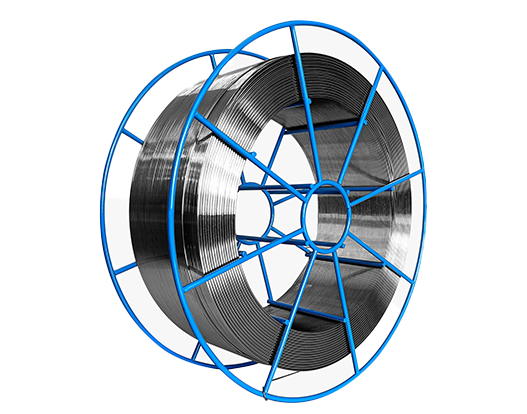

| SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |

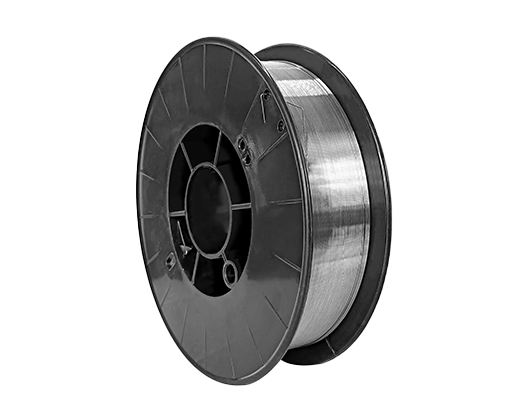

| SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
| SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |

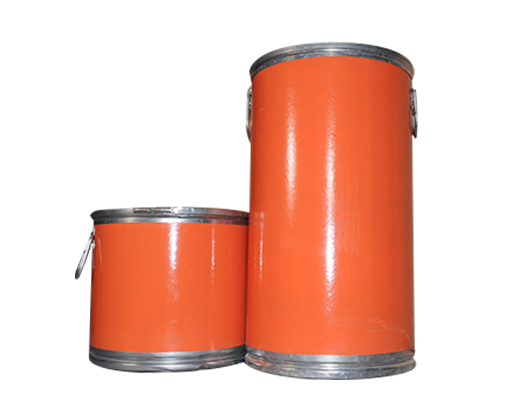

| Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
TechnicaL Specification
| PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT ENERGY ISO-V(J) 20° C | WELDING CONDITIONS |
| SUPERMIG 309LMo | ER 309 Lmo | ≥ 350 | ≥ 550 | ≥ 30 | ≥ 55 | DC (+) |
