Description
SUPERMIG 347/347H
DESCRIPTION : SUPER MIG 347/347H is a G 19 9 Nb / ER 347H type solid MIG welding wire, supplied precision layer wound, depositing a Niobium stabilized 19Cr 9Ni weld metal, suitable for use with Ar+2%O2 or Ar+0.5…5%CO2 mixed shielding gases. SUPER MIG 347/347H is used for welding of 321H and 347H austenitic stainless steels and similar steel , mainly used in applications including the fabrication of pipe, plate and vessels. The weld metal has a high resistance to corrosive media at service temperatures
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish
SUPERMIG 347/347H - TYPE OF PACKING :

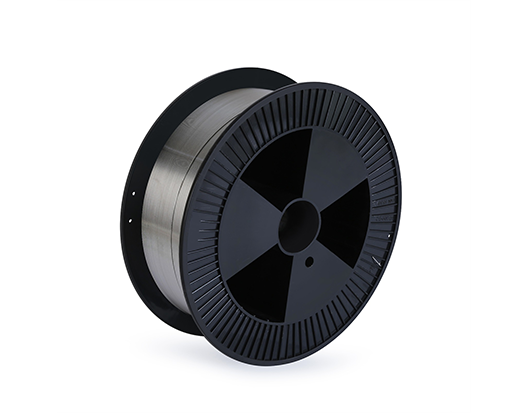

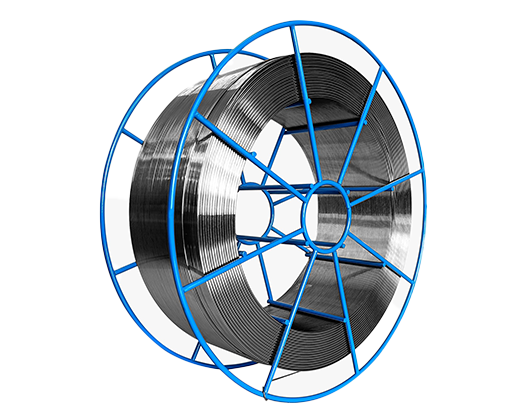

| SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |

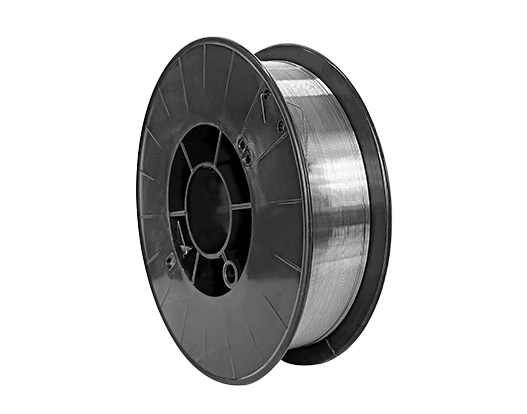

| SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
| SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |

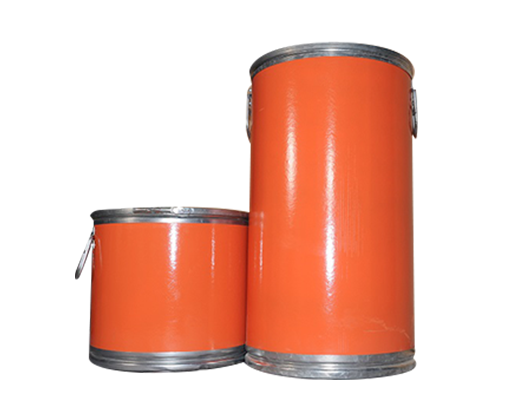

| Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
TechnicaL Specification
| PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5 | IMPACT ENERGY ISO-V(J) 20° C | WELDING CONDITIONS | PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5 | IMPACT ENERGY ISO-V(J) 20° C | WELDING CONDITIONS |
| SUPERMIG 347/347H | AWS A5.9: ER 347/347H EN ISO 14343-A: G 19 9 Nb | ≥ 400 | ≥ 550 | ≥30 | ≥ 65 | DC (+) | SUPERTIG 347 | ER 347 | ≥ 400 | ≥ 550 | ≥ 30 | ≥ 65 | DC (-) |
