Description
SUPERMIG 309L
DESCRIPTION : SUPERMIG 309L is low carbon 25 Cr/ 12 Ni stainless steel solid wire similar in composition to ER 309L. Suitable for welding of austenitic stainless steel such as AISI 309. It is also used to weld dissimilar steels and for buffer layers and buttering 18 Cr/ 8 Ni steels.
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish

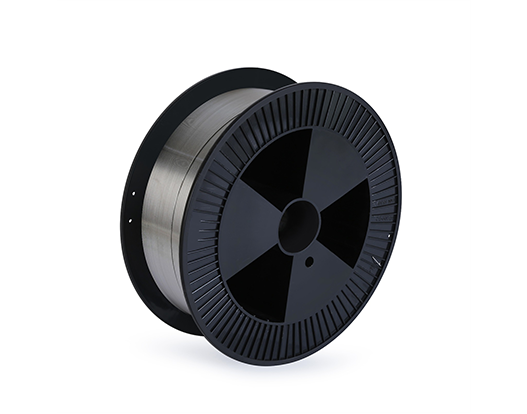

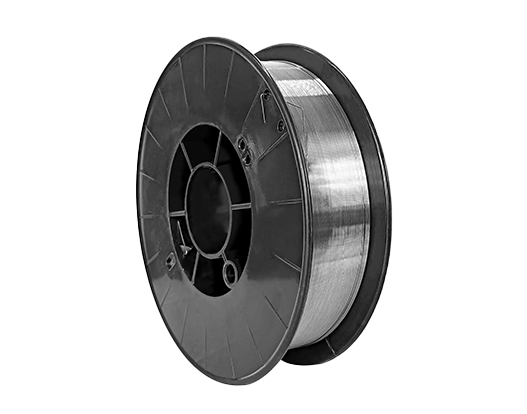

SUPERMIG 309L - TYPE OF PACKING :
| SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |
| SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
| SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |

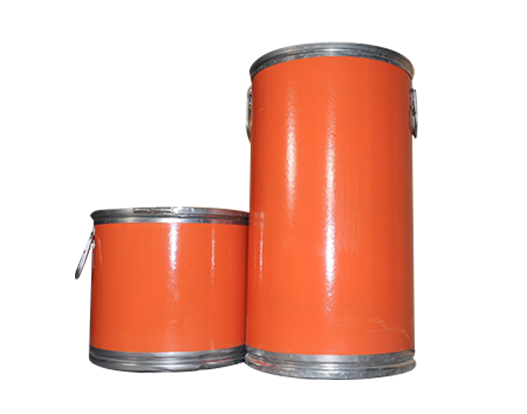

| Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
TechnicaL Specification
| PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT ENERGY ISO-V(J) -20° C | WELDING CONDITIONS |
| SUPERMIG 309L | ER 309 L | ≥ 350 | ≥ 550 | ≥ 30 | ≥ 47 | DC (+) |
