- AISI 302
- AISI 304
- AISI 316
GENERAL APPLICATION :

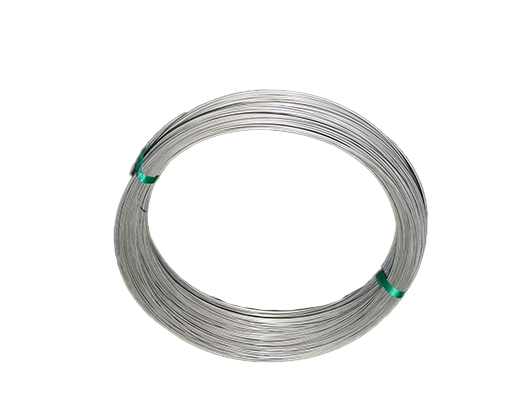

Stainless steel spring wire is manufactured with excellent mechanical properties for uniformity in spring forming. The input wire has to go through a number of quality control process to ensure strict adherence to our specified cast, wrap, helix and bend test requirements. This type of wire is painstakingly finished to eliminate flaws which reduce fatigue strength i.e. lateral and longitudinal cracks, pits and marks.
| SIZE RANGE |
FINISH |
PACKAGING |
| 0.20 to 0.70 mm (0.008” to 0.028”) |
Bright |
On Spools - DIN 100, DIN 125, DIN 160, DIN 200, DIN 250, DIN 355 |
| 0.70 to 6.00 mm (0.028” to 0.236”) |
Soap Coated, Matte finish |
In Coils - 0.40-1.70 - 30 to 50 Kg
1.80-6.00 - 100 to 500 Kg |
| SPECIAL FEATURES |
| Smooth Surface |
High Corrosion Resistance |
Excellent Heat Resistance |
Superior Coiling Efficiency |
High Fatigue Strength |
| SPRINGS WIRE ARE PRODUCED AS PER |
| ASTM A313/ JIS G4314/ BS EN 10270, DIN EN 10270 - 1, 3, DIN 17224 |
DIN 17440 |
ISO 4454 |
